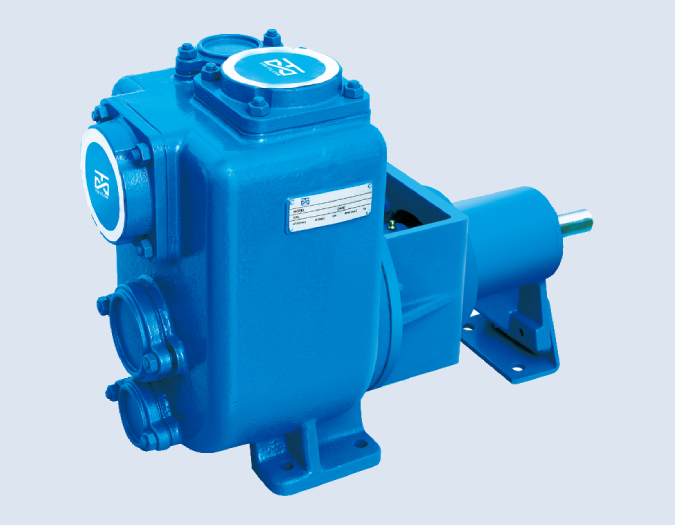

YJ Series Self-priming Sewage Pump
YBI-FLOW YJ series are self-priming sewage pumps with the advanced device Maintenance Hole and Wear Plate. They can transfer of liquid containing sand,particle and solid in suspension, superior in performance and maintenance.
Download
Technical Details
- Design & Material
- Operating Data
- Applications
- Design : Performance and Dimensions referring to the European standard
- Structure : Semi-openimpeller,Horizontal,Single-Stage,Single-Suction,Self-priming
- DN (mm) : 40 – 200
- Flange : All YJ pumps are casted with flange
- Casing : Cast lron standard,Ductile lron
- Impeller : Bronze standard,Cast lron,Stainless Steel optional
- Shaft : ASTM420standard,ASTM304, ASTM316,ASTM1045 optional
- Shaft seal: Mechanical Seal (Carbon-Sic/Viton)
- Flow Rate(Q) : 2-160 l/s
- Head(H) : 4-60m
- Speed : 1450~2900 rpm (50HZ), 1750~3500 rpm (60HZ)
- Temperature : ≤105℃
- Working Pressure: 0.6 MPa
- Max Solids: 76mm
- Waste Water Treatment Plant
- Portable Emergency Fire Fighting
- Marine – Ballasting & Bilge
- Liquid transfer:Transfer of liquid containing sand, particle and solid in suspension
