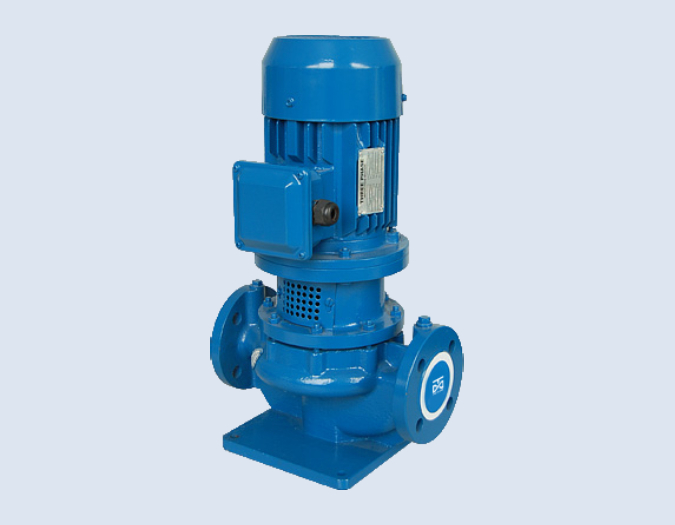

YG Series Vertical Inline Pump
YBI-FLOW YG series vertical inline pump offer vertical and close coupled design for space saving to meet the needs of users in a variety of cold and hot water circulation, civil and general industrial. They are driven by IEC standard motor and less space-required for installation.
Download
Technical Details
- Design & Material
- Operating Data
- Applications
- Design : Performance referring to BS EN733/DIN24255 standard
- Structure : Vertical,Single-Stage,Single-Suction,Volute,Casing,In-line
- DN (mm) : 40 – 200
- Flange : DIN2501 standard,ANSI B16.5 Class 150lb optional
- Casing : Cast lron standard,Ductile lron
- Impeller : Bronze standard,Cast lron,Stainless Steel optional
- Shaft : ASTM420standard,ASTM304, ASTM316,ASTM1045 optional
- Shaft seal: Mechanical Seal (Carbon-Sic/Viton)
- Max Flow Rate(Q) : 600m³/h
- Max Head(H) : 155m
- Speed : 1450~2900 rpm (50HZ), 1750~3500 rpm (60HZ)
- Temperature : -10 Celsius to 105 Celsius
- 1.6 MPa standard
- Heating, ventilation and air-conditioning
- Fire Protection and Fire Fighting
- Water circulation
- Liquid transfer
- Irrigation
- Cooling
- Booster service
