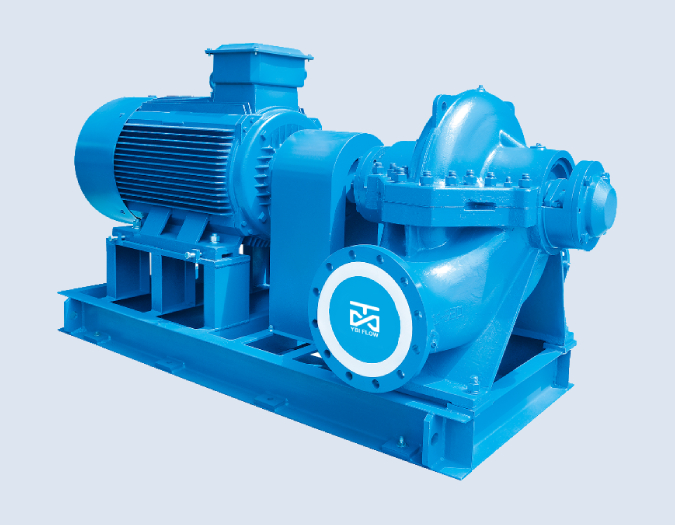

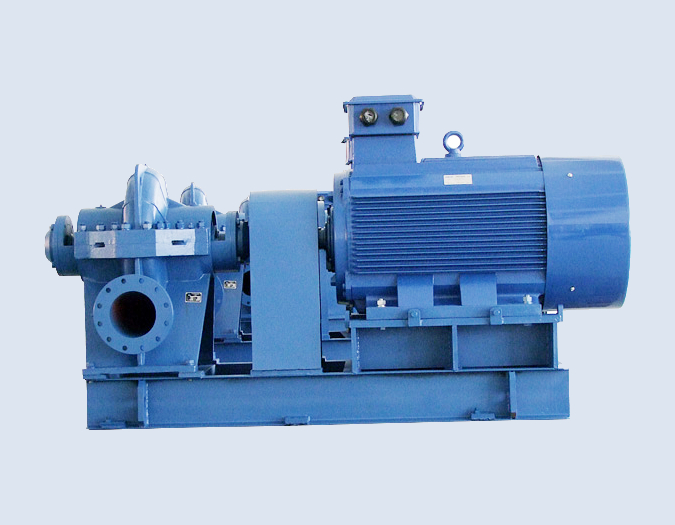

YSD Series Double-suction Split Case Pump & Motor Unit
YBI-FLOW YSD Series Double-suction Split Case Pump & Motor Unit are double-suction designed, which ensures high efficiency and durability. Double Suction Pumps have a wide range of applications with medium to high flow rates,offering superior performance in both efficiency and maintenance.
Download
Technical Details
- Design & Material
- Operating Data
- Applications
- Design : DIN Standard & GB/T5657-95
- Structure : Single-Stage,Double-Suction,Split-Casing
- DN (mm) : 50 – 350
- Flange : DIN2501 PN16 GB/T17241.6 PN1.6(ANSI,JIS,AS. . .)
- Casing : Cast lron standard,Ductile lron
- Impeller : Bronze standard,Cast lron,Stainless Steel optional
- Shaft : ASTM420standard,ASTM304, ASTM316,ASTM1045 optional
- Shaft seal: Mechanical Seal Standard, Gland Packing optional
- Flow Rate(Q) : 36~3400m³/h
- Head(H) : 8~190m
- Speed : 1450~2900 rpm (50HZ), 1750~3500 rpm (60HZ)
- Temperature : -10°C ~ +85°C (standard) ,+85°C ~ +105°C(on special request)
- 1.6MPa (standard), 2.5MPa(on special request)
- Marine and Ship Building
- Power Plant
- Municipal Water Supply
- Irrigation
- Fire Protection and Fire Fighting
- HVAC and Cooling Tower
