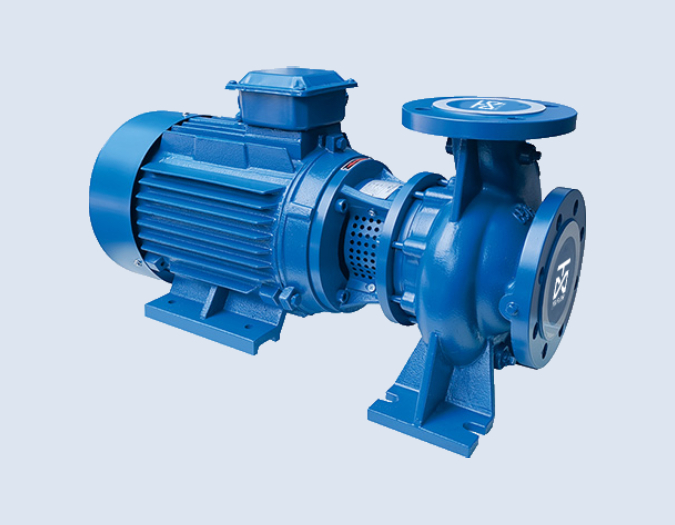

YKZ Series Horizontal Monobloc Centrifugal Pump
YBI-FLOW YKZ series are brand new, unique and innovative industrial pumps designed in compliance with DIN24255 and ISO9908 standards, with an energy efficiency index of more than MEI 0.7 or MEI 0.4, satisfying EU MEI requirements. EKZ series features a simple connection process where the motor shaft is inserted into the pump shaft, significantly enhancing shaft reliability, and is compatible with IEC standard motors from any brand, offering users increased flexibility and easy installation and maintenance.They are widely used in factories, mines, water supply, fire protection systems, HVAC, and irrigation.
Download
Technical Details
- Design & Material
- Operating Data
- Applications
- Design : Performance and dimensions referring to the European standard BS EN733/DIN24255
- Structure : Horizontal,Axial End-Suction,Single-Stage,Single-Suction,Volute Casing,Back pull-out
- DN (mm) : 32 – 150
- Flange : DIN2501 standard,ANSI B16.5 Class 150lb optional
- Casing : Cast Iron standard,Ductile Iron,Stainless Steel optional
- Impeller : Bronze standard,Cast Iron,Stainless Steel optional
- Shaft : ASTM420standard, ASTM304, ASTM316, ASTM1045 optional
- Mechanical Seal Standard
- Flow Rate(Q) : 2-700 m3/h
- Head(H) : 2-150m
- Speed : 1450~2900 rpm (50HZ), 1750~3500 rpm (60HZ)
- Temperature : -10°C ~ +85°C (standard) ,+85°C ~ +105°C(on special request)
- Working Pressure: 1.0 MPa standard, 1.6 MPa on request
- Water supply and drainage
- HVAC and Cooling Tower
- Fire Protection and Fire Fighting
- Marine – Ballasting & Bilge
- Booster and Pressurization Set
- Irrigation and agriculture
- Water supply and drainage
