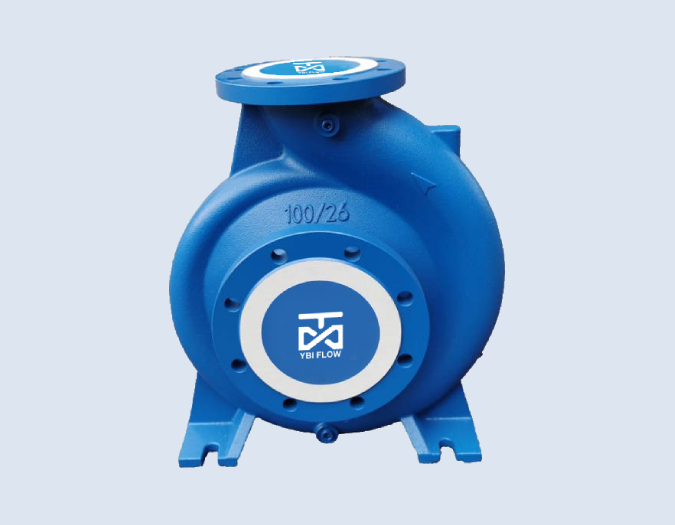

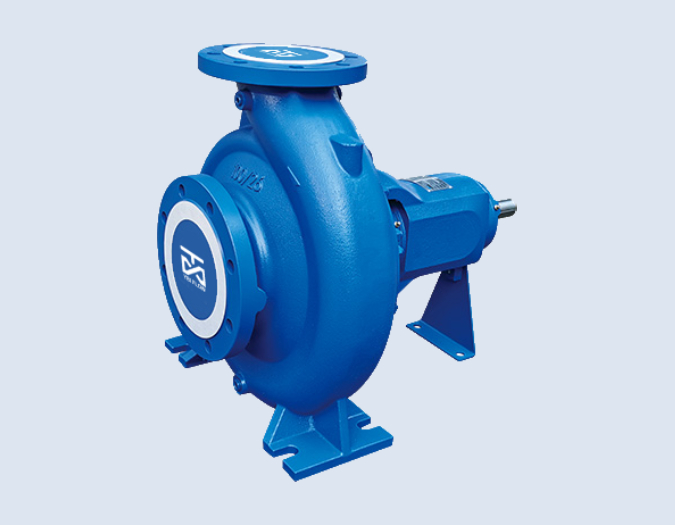

YK Series Horizontal Single-stage End-suction Centrifugal Pump
YBI-FLOW YK series are brand new, unique and innovative industrial pumps designed in compliance with DIN24255 and ISO9908 standards, with an energy efficiency index of more than MEI 0.7 or MEI 0.4, satisfying EU MEI requirements. EK's new industrial end-suction pumps are capable of meeting the needs of customers in major industrial markets with options of various material configurations.They are widely used in factories, mines, water supply, fire protection systems, HVAC, and irrigation.
Download
Technical Details
- Design & Material
- Operating Data
- Applications
- Design : Performance and dimensions referring to the European standard BS EN733/DIN24255
- Structure : Horizontal,Axial End-Suction,Single-Stage,Single-Suction,Volute Casing,Back pull-out
- DN (mm) : 32 – 300
- Flange : DIN2501 PN16 GB / T17241.6 PN1.6 (ANSI,JIS,AS. . .)
- Casing : Cast Iron standard,Ductile Iron,Stainless Steel optional
- Impeller : Bronze standard,Cast Iron,Stainless Steel optional
- Shaft : ASTM420standard, ASTM304, ASTM316, ASTM1045 optional
- Mechanical Seal Standard, Gland Packing optional
- Flow Rate(Q) : 4-1584 m3/h
- Head(H) : 5-150m
- Speed : 1450~2900 rpm (50HZ), 1750~3500 rpm (60HZ)
- Temperature : -10°C ~ +85°C (standard) ,+85°C ~ +105°C(on special request)
- Working Pressure: 1.0 MPa standard, 1.6 MPa on request
- Heating, ventilation and air-conditioning
- Fire Protection and Fire Fighting
- Water circulation
- Liquid transfer
- Irrigation
- Cooling
- Booster service
