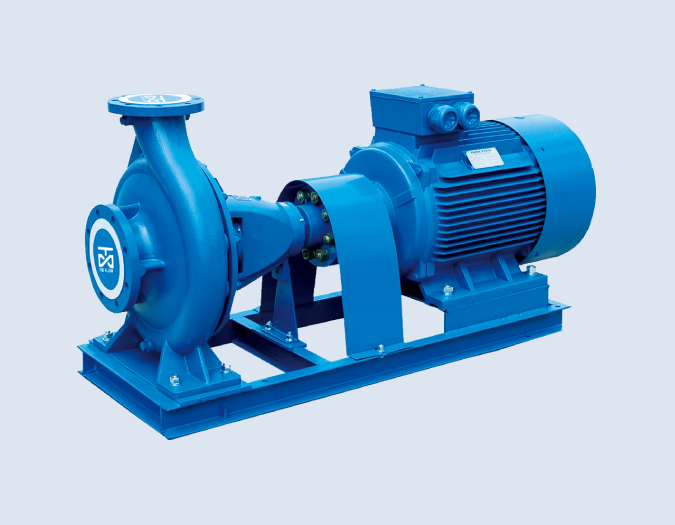

YAD Series Single-stage Centrifugal Pump Unit
YBI-FLOW YAD series end suction centrifugal pump completed sets are designed with technical benefits to meet the needs of users in a variety of city water supply, fire fighting, irrigation, and cooling applications.
Download
Technical Details
- Design & Material
- Operating Data
- Applications
- Design : Performance and dimensions referring to the European standard BS EN733/DIN24255
- Structure : Horizontal,Axial End-Suction,Single-Stage,Single-Suction,Volute Casing,Back pull-out
- DN (mm) : 32 – 300
- Flange : DIN2501 standard,ANSI B16.5 Class 150lb optional
- Casing : Cast Iron standard,Ductile Iron,Stainless Steel optional
- Impeller : Bronze standard,Cast Iron,Stainless Steel optional
- Shaft : ASTM420standard, ASTM304, ASTM316, ASTM1045 optional
- Mechanical Seal Standard, Gland Packing optional
- Flow Rate(Q) : 2-1100 m3/h
- Head(H) : 2-152m
- Speed : 1450~2900 rpm (50HZ), 1750~3500 rpm (60HZ)
- Temperature : -10 Celsius to 105 Celsius
- Working Pressure: 1.2 MPa standard, 1.6 MPa on request
- Heating, ventilation and air-conditioning
- Fire Protection and Fire Fighting
- Water circulation
- Liquid transfer
- Irrigation
- Cooling
- Booster service
