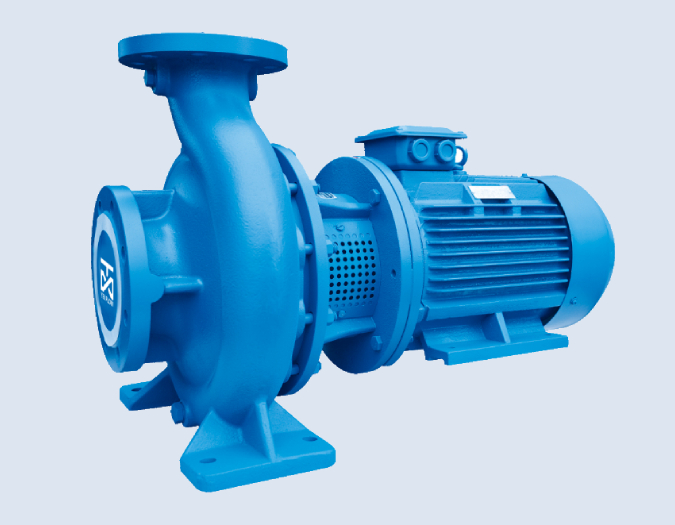

YAZ Series Close-coupled Centrifugal Pump
YBI-FLOW YAZ series end suction centrifugal pumps offer close coupled design for space saving and simplified maintenance. They are driven by IEC standard motor, much shorter in length thus takes less space to install.
Download
Technical Details
- Design & Material
- Operating Data
- Applications
- Design : Performance and dimensions referring to the European standard BS EN733/DIN24255
- Structure : Horizontal,Axial End-Suction,Single-Stage,Single-Suction,Volute Casing,Back pull-out
- DN (mm) : 32 – 300
- Flange : DIN2501 standard,ANSI B16.5 Class 150lb optional
- Casing : Cast Iron standard,Ductile Iron,Stainless Steel optional
- Impeller : Bronze standard,Cast Iron,Stainless Steel optional
- Shaft : ASTM420standard, ASTM304, ASTM316, ASTM1045 optional
- Mechanical Seal Standard, Gland Packing optional
- Flow Rate(Q) : 2-700 m3/h
- Head(H) : 2-152m
- Speed : 1450~2900 rpm (50HZ), 1750~3500 rpm (60HZ)
- Temperature : -10 Celsius to 105 Celsius
- Working Pressure: 1.2 MPa standard, 1.6 MPa on request
- Heating, ventilation and air-conditioning
- Fire Protection and Fire Fighting
- Water circulation
- Liquid transfer
- Irrigation
- Cooling
- Booster service
